Dreapex Leda Optical Simulation

Leda empowering OLED research with nano-optics simulation.

Discover Leda's tools for OLED, QLED, and PeLED optical analysis. Leda has merged into Dreapex TMM; continue your work there.

Open TMM TMM Documentation Learn more

Multiple Detectors

Leda provides multiple detectors for comprehensive optical analysis

Multiple detectors can simulate spectrum, angular distribution, optical loss channel, etc. The combination of multiple detectors can deeply explore the optical mechanism and comprehensively optimize the device.

Angular Spectrum

Emission spectrum and angular intensity distribution.
Power Dissipation

Power dissipation density per unit in-plane wave vector.
Mode Distribution

Power coupled to different optical channels, and Purcell factor.

Research on Optics

01. Microcavity Effect ― Combining the three detectors, you can explore the impact of microcavity effect on spectrum, angular intensity distribution, waveguide loss, and outcoupling efﬁciency.
02. Purcell Effect ― The Purcell effect describes the enhancement of the spontaneous emission rate by a confined environment, it can be explored with the mode distribution detector.
03. Waveguide ― Waveguide modes are optical losses due to total internal reflection. Using power dissipation and mode distribution detectors to study waveguide modes can help design light extraction structures.
04. Surface Plasmon Polariton ― Surface plasmon polaritons at a metal-dielectric interface are optical losses. Power dissipation and mode distribution detectors can help analyze and find solutions to reduce it.

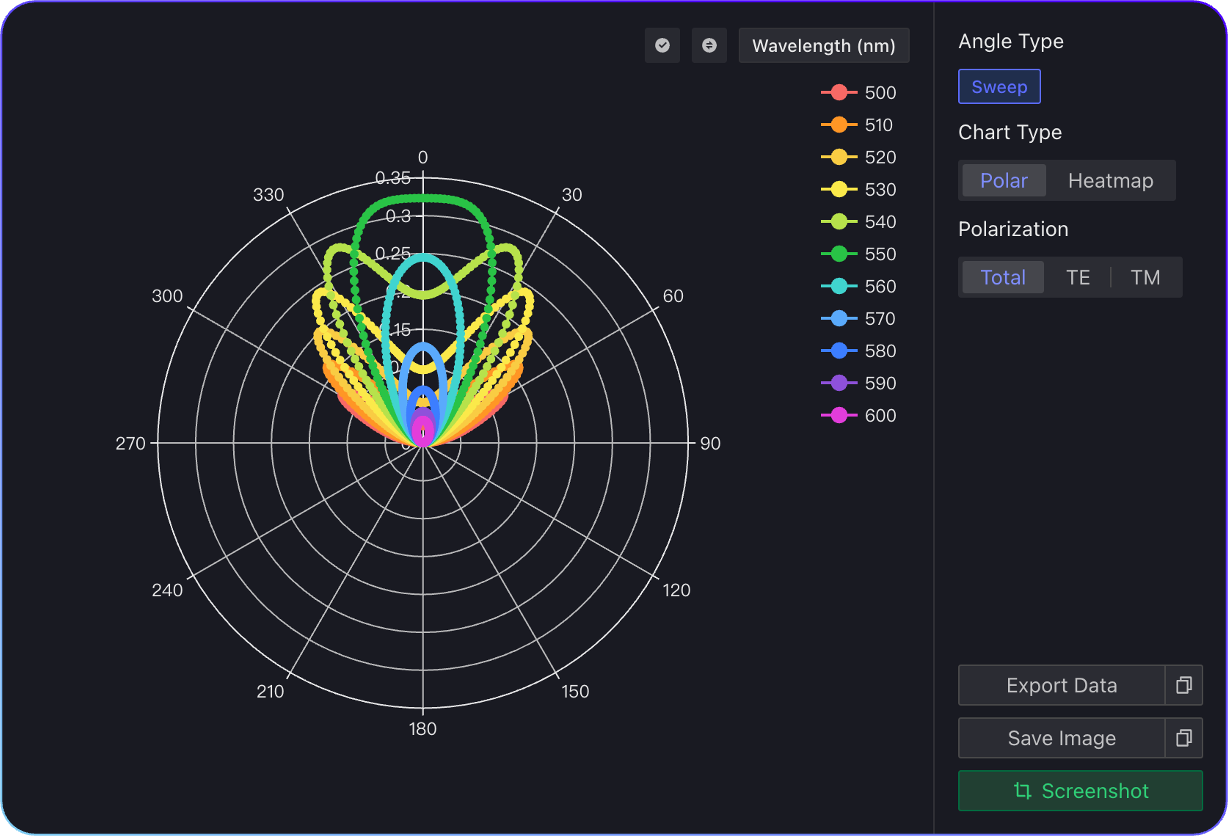

Angular Spectrum

Angular intensity distribution under microcavity effect

A semitransparent metallic electrode is used to enhance microcavity effect, and the angular intensity distribution varies with wavelength.

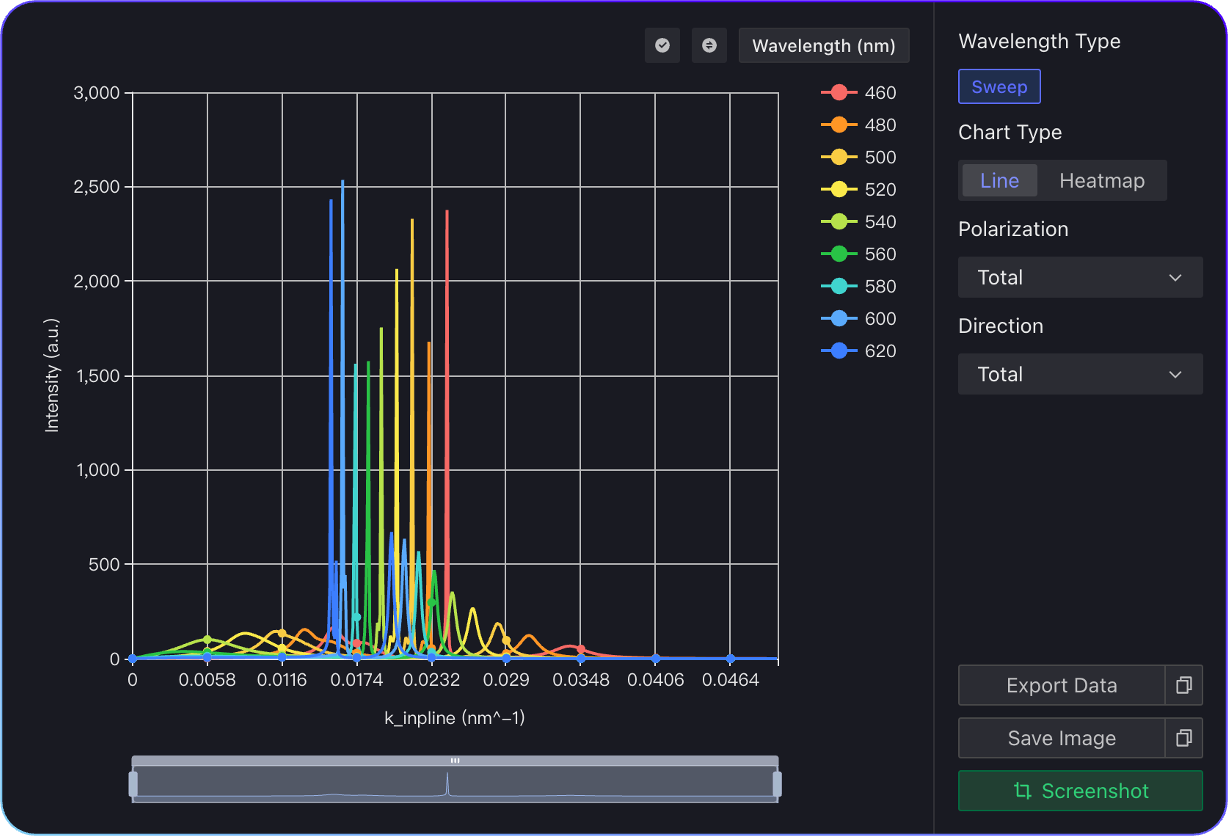

Power dissipation

Power dissipation spectrum

Power dissipation spectrum reveals the resonant peak shift with varied wavelength. You can switch polarization and detector direction in the result.

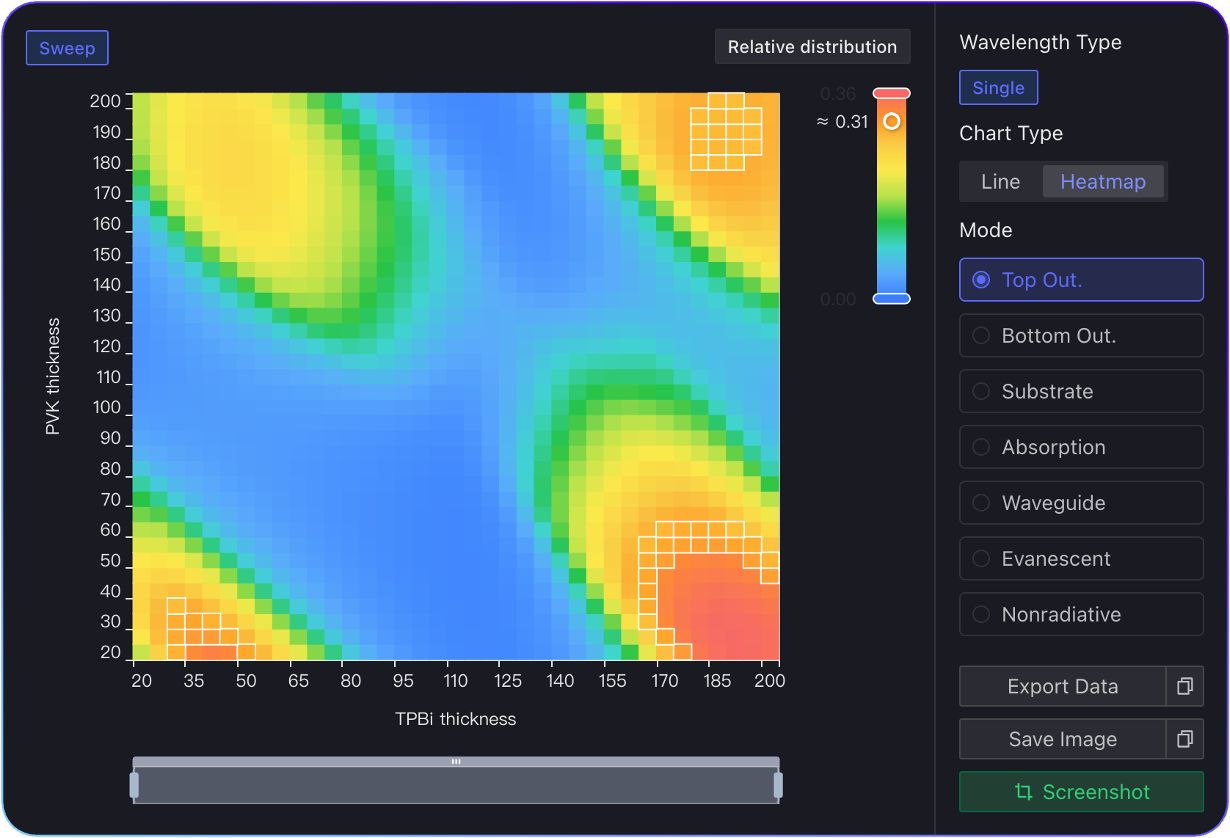

Mode Distribution

Outcoupling efficiency with varied HTL and ETL thicknesses

Hole transport layer (HTL) and electron transport layer (ETL) thicknesses determine the microcavity, which can be used to optimize the outcoupling efficiency.

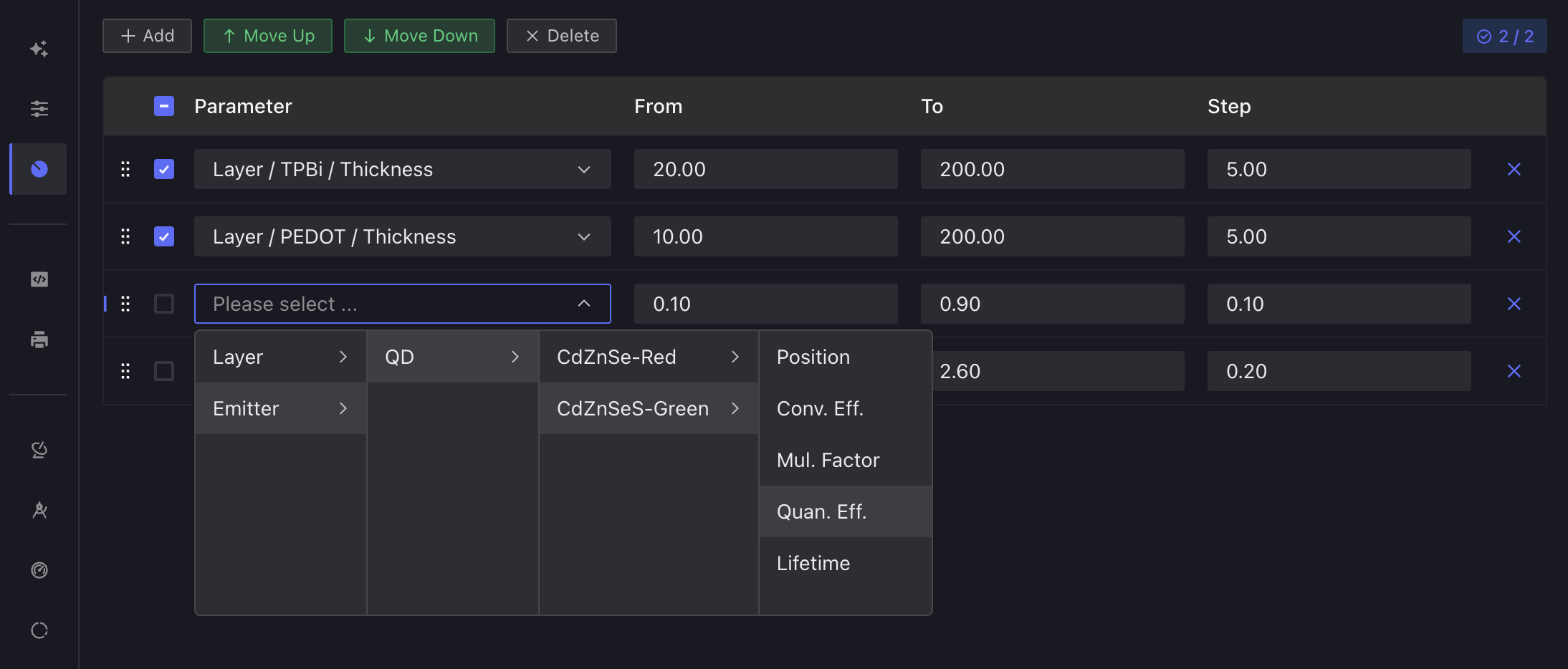

Parameter Sweep

Sweep parameters to optimize efficiency

01. Double Parameter Sweep ― Sweep supports up to two parameters. Results can be presented as line charts and heatmaps.
02. Support for structure, emitters ― Sweep layer thickness and refractive index, emitter position and quantum efficiency, etc.

User Experience

Leda delivers an intuitive user experience, beyond a simulation software.

Accurate and Fast

Based on efficient algorithms and multithreading, the computation is accurate and ultra-fast.
User-friendly

Intuitive design for beginners, learn in 1 hour, model in 5 minutes.
Compatible

Export data in tabular form for your favorite graphing software, no post-processing required.
Dark Mode

Dark mode can protect our eyes so that we can enjoy our research findings in the future.

Powerful features

All features empowering your optical simulation

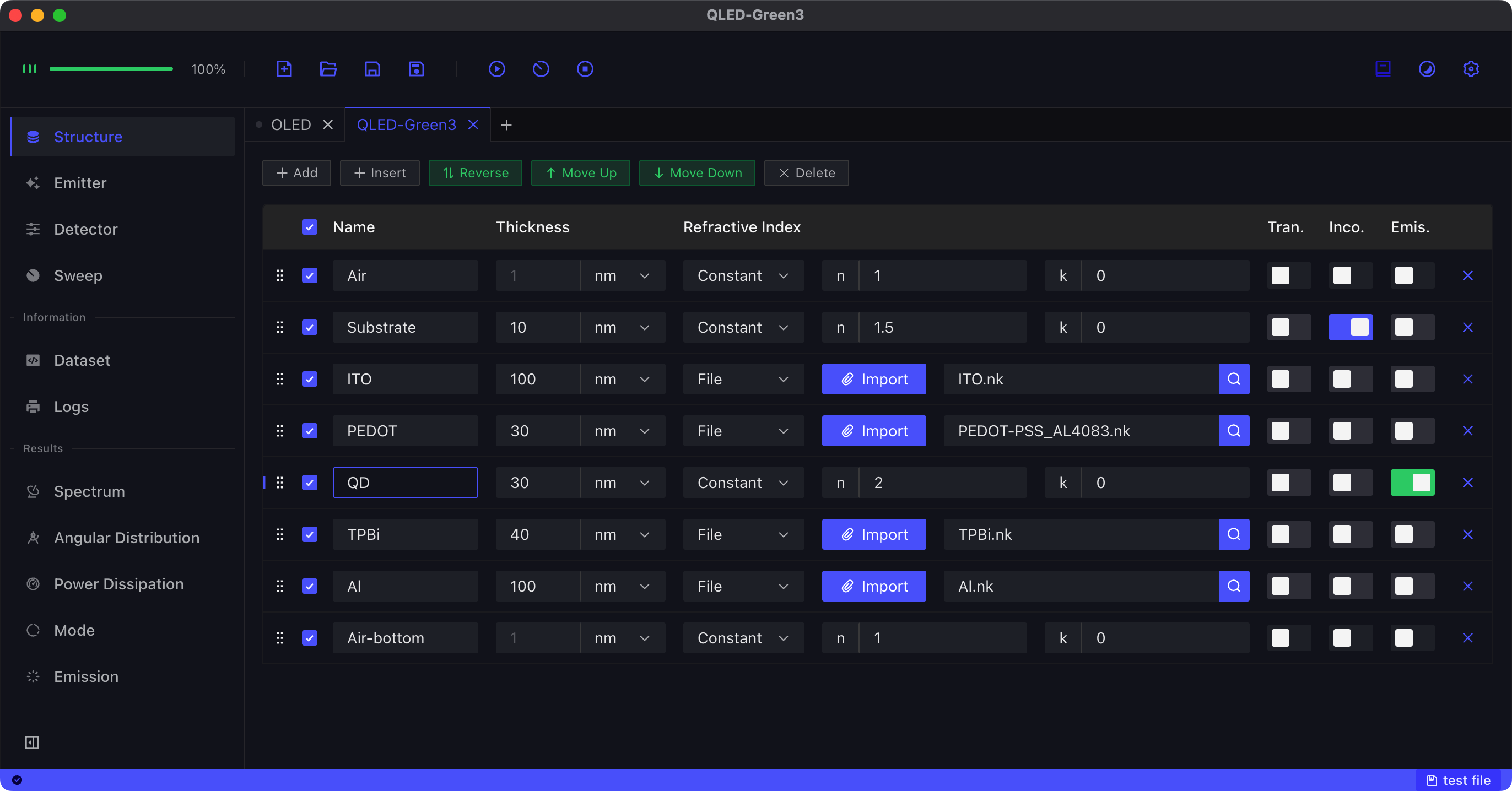

Easy modeling
Average running time
Data export

Detector Combination — 3 detectors
Parameter Sweep — up to 2
Fast Algorithm — 1000x faster than FDTD
Multithreading — unleash multi-core performance
Multi-EML — tandem structure
Multi-emitter — emitter mixing
Birefringence — anisotropic material
Polarization — switch polarization in results
Interaction — interactive data visualization
DnD — drag and drop sorting
Data View — access to raw data
Open Format — review file anytime
Chart Type — view data in line chart or heatmap
One-click Export — support data and chart
Multi-file — open and run files simultaneously
Cross-platform — Windows and macOS

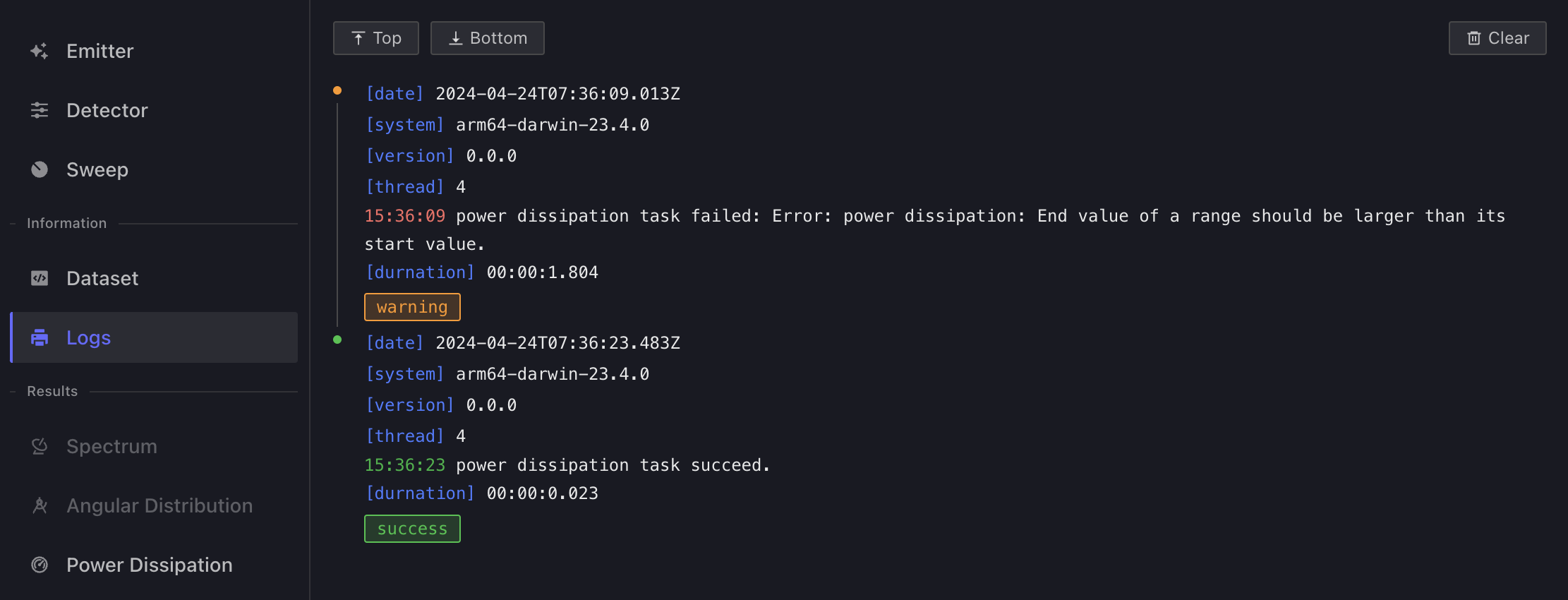

Logbook — record errors
Tooltip — beginner-friendly
Light / Dark Mode — protect eyes
Progress Bar — progress of runing and sweeping
Multiple Languages — support in the future

FAQ

Frequently Asked Questions

Continue with Dreapex TMM

Leda has merged into Dreapex TMM. Visit TMM for the current optical simulation product.

Explore OLED/QLED modeling in TMM →
